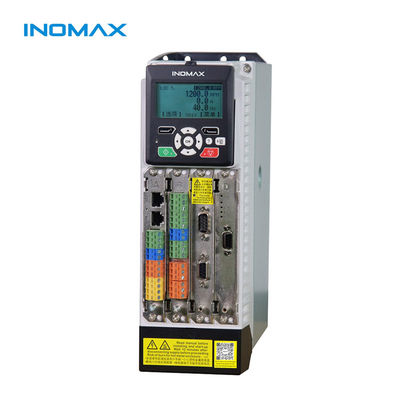

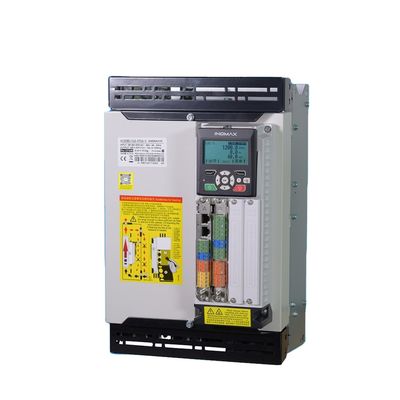

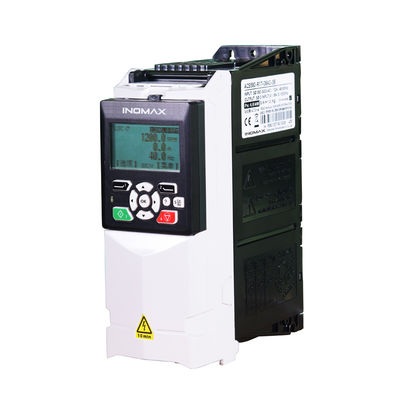

INOMAX Low Voltage Variable Frequency Drive with 380V-500V Range 1.5KW-250KW Power and 50HZ or 60HZ Output for Industry Automation

MOQ:	5
harga:	$99

Detail Information

Deskripsi Produk

Detail Information

Tempat asal:

CINA

Arus keluaran:

Memuat

Frekuensi output:

50Hz atau 60Hz

Tipe output:

Lajang

Ukuran:

505*205*165 mm

Berat:

10kg

Rentang daya:

1.5kW-250kw

Tegangan daya:

220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V

Mode kontrol:

Kontrol DTC, Kontrol Vektor

Jenis Protokol:

MODBUS, CANOPEN, PROFIBUS, PROFINET, ETHERCAT, ETHERNET

Respons torsi:

kurang dari 5 ms

Akurasi kecepatan:

Kurang dari 0,5%

Resolusi Kecepatan:

0,01Hz

Rentang Frekuensi Keluaran:

0 ~ 1000Hz

Pengulangan torsi:

Masukan thdi:

<5%

Menyoroti:

380V-500V Variable Frequency Drive

1.5KW-250KW VFD

50HZ or 60HZ Frequency Inverter

Deskripsi Produk

INOMAX Low Voltage Frequency Inverter for Industrial Automation

High-performance ACS580 frequency inverter supporting 380V-500V power range and 1.5KW-250KW applications.

Product Range	ACS580 frequency inverter ABB Analog
Product Type	High performance DTC drive
Applications	Complex, Heavy duty, Speed control, Tension control, Position control, Lifting control, DTC, STO, Direction torque control, Safe Torque Off
Power Range	1.5kW-250kW
Voltage	220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V
Control Mode	DTC control, Vector control
Protocols	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 months

ACS580 Key Advantages

ACS580 DTC/Servo Drive 380V-480V 1.5KW-250KW Features:

Direct torque control technology equivalent to ABB systems
Compatible with any sine wave AC motor including IM/PM/SynRM/Servo motors
Built-in standard EMC filters, DC reactor and braking units
Supports Modbus and Canopen communication protocols
2x torque at zero speed without sensor control, smooth driver/brake switching
Torque response time under 5ms for sensorless applications (0 to rated torque)
Torque repeatability of 1%, comparable to closed-loop vector or DC devices

Speed loop dynamic response accuracy of 0.7%
Sensorless speed accuracy under 0.5% (eliminating sensors in 95% of applications)
Advanced weak magnetic control technology for energy savings and reduced motor noise
Intelligent temperature-controlled fan extends drive lifespan
Built-in logic programming function reduces PLC requirements
Pre-configured application parameter macros for quick commissioning

The ACS580 with direct torque control and position control functions is ideal for servo motor applications, including spindle drives, tower cranes, and flying shear machines.

Application Project Experience

Metallurgy Project: Henan Yaxin Iron and Steel Plant

The converter steelmaking process requires precise parameter detection and automatic control to ensure molten steel quality and output. Our system provides:

360° continuous rotation with 4x 90KW variable frequency motors
Accurate stopping at any position with speed regulation
Safety interlocking with oxygen lance, ladle car and fume hood
Fault tolerance to continue operation during electrical/mechanical failures
Shock load and torsional vibration buffering during start/stop

Solution Implementation

Master/slave control with internal communication between drives ensures absolute synchronization of all four motors, eliminating "nodding" and "shaking" issues.

20-Roll Reversible Mill Project

Our regenerative drive application features:

4 motors: 1x 1900kW main winding, 2x 2000kW winding, 1x 250kW unwinding
690VAC input voltage
Main coiling motor: 18.2Hz rated, 56.6Hz max operating frequency
Tension control accuracy under 1%
600m/min maximum rolling line speed
System design: 5x AFE + 16x SMM inverter

Mine Hoist Experience

Selected by SIEMAG TECBERG group for shaft hoisting systems requiring:

Low harmonics (THDi < 3%)
High torque at low frequency operation
Safe low-speed operation for sensitive environments

Motor Test Bench Project

System configuration with 2 motors (MUT and DM) provides:

Motor durability and mechanical properties testing
Temperature rise and overload performance analysis
Field weakening performance and efficiency measurement
Real-time display of voltage, current, torque, speed, power and efficiency

VFD Selection for Test Bench

Inomax AFE rectifier with LCL filter ensures:

Stable DC bus voltage for constant torque output
Input THDi under 5%
0-1000Hz output frequency range with 0.01Hz resolution
Under 20ms open loop torque response time

4Q Regenerative Drive Advantages

Significant energy savings through grid feedback
Bidirectional loading capability for different tests
Rated load torque from zero speed to 5-6x field weakening
ms-level torque response for simulated loads
Anti-drag capability for multi-purpose applications

Xiangyanghong Scientific Research Ship Winch System

High-end marine winch application requiring:

Strict EMI control for precision electronic equipment
Under 3% harmonics for sensitive marine environment
High-precision multi-machine torque coordination

Oil Field Applications

Frequently Asked Questions

What is direct torque control?

Advanced motor control technology that provides fast torque response by directly controlling motor flux and torque without complex coordinate transformations.

Benefits of direct torque control:

Fast torque and flux response to reference changes
High efficiency with minimized switching losses
No overshoot in step response
No PI current controllers or control tuning required
Low audible noise due to random switching spectrum
Automatic compensation for DC voltage variations
Simple synchronization to rotating machinery

Motor compatibility:

Three phase AC induction motors with proper insulation (800V for 200V class, 1600V for 400V class inverters). Select motor first, then match inverter.

Common motor failure causes:

41% bearing related
37% stator related
10% rotor related
12% other causes

VFD selection criteria:

Match motor specifications first, then consider application requirements for torque, speed, control accuracy, and environmental conditions.
